Retrofit Kits - STA 20

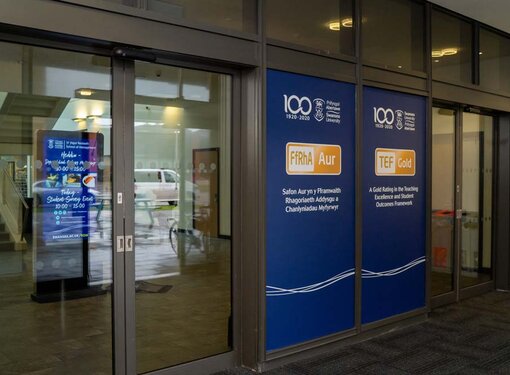

The record STA 20 is the well-proven classic sliding door system at the very centre of record’s product range, and is suitable for almost any application. It is available as a double-leaf or single-leaf door set. The modular drive and profile systems guarantee a reliable and low-noise operation over long periods. The record system 20 is the first automatic door system featuring interactive communication, simplified commissioning, intuitive control and greatly enhanced operational safety and reliability. Depending on the customer’s requirements, narrow, standard or robust glass profiles are used for the glass doors, and all models can be equipped with escape route safety systems.

Linear telescopic sliding door record TSA 20

Where an opening needs to be as wide as possible record's two or four leaf telescopic sliding doors provide an impressive alternative to sliding doors. In comparison with the traditional sliding door, they take up about 30 % less space thanks to their narrower leaves, and yet can cover especially large opening widths of up to 4000 mm. The maximum door weights range from 2 x 130 kg for single, and 4 x 90 kg for telescopic sliding doors on both sides. These telescopic doors use the same robust and extremely reliable record system 20 which fulfills 2006/42/EG industrial guidelines for machines, DIN 18650 as well as meeting all relevant national and international standards.
